HIGH GAS CONTENT LIQUIDS

High gas content liquids : Hydrogen (H) Nitrogen (N) … Find out our range of pumps related to this application : PUMPING RESTRICTIONS :On a classical canned motor pump, the important quantity of gas deactivates the centrifugal impeller and thus the motor circulation. As a consequence, the hydrodynamic bearings often break. OPTIMEX SOLUTIONS :Depending on…

DIPHASIC LIQUIDS

Diphasic liquids : Carbone Dioxyde (CO2) Sulfur Hexafluorure (SF6) … Find out our range of pumps related to this application : PUMPING RESTRICTIONS :Products in a diphasic stage cannot be pumped by classical liquid centrifugation. On a classical canned motor pump, the important quantity of gas deactivates the centrifugal impeller and thus the motor circulation.…

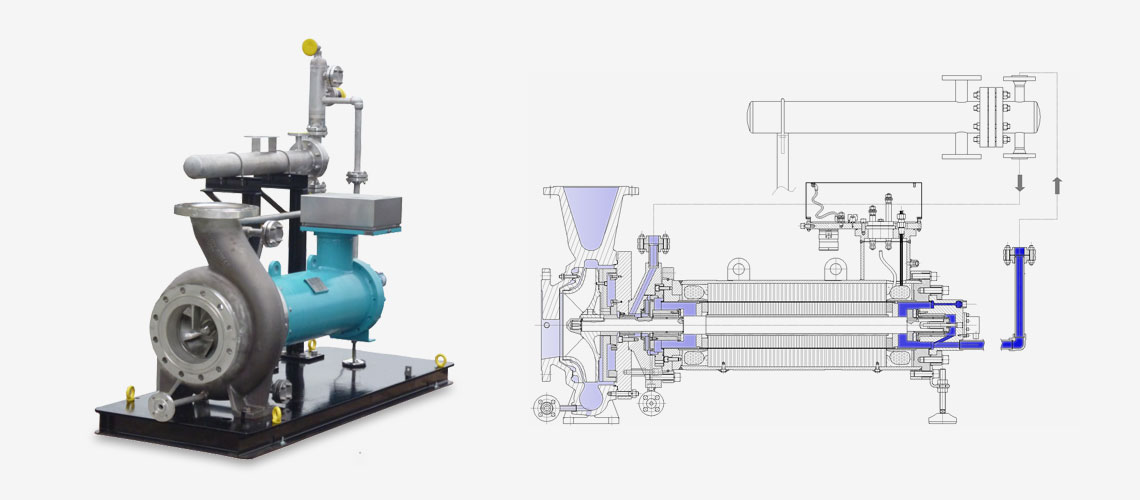

CRYSTALIZING AND POLYMERIZING LIQUIDS

Crystalizing and polymerizing liquids : Nylon Salt Adipic acid Para-octyphenol Thiodipropanoic Acid Hexanetriol formal … Find out our range of pumps related to this application : PUMPING RESTRICTIONS :Avoid Crystalizing and polymerizing in case of temperature drop. OPTIMEX SOLUTIONS :To maintain the liquids physical properties, OPTIMEX can propose pumps with a double heating jacket on…

UNDER SUCTION LIFT CONDITIONS

Under suction lift conditions : Dewatering Sea water pumpin Recirculation of industrial effluents Sewage pumping Black water pumping Find out our range of pumps related to this application : PUMPING RESTRICTIONS :Pump is mounted above the level of suction tank. OPTIMEX SOLUTIONS :OPTIMEX proposes two solutions : Side channel pumps Self-priming pumps (pump with priming…

HIGH PRESSURE LOOP

A « high pressure » application means thats the suction pressure is above 50 bars, and that there is no limited nominal pressure. Most of the time, the PED standard (Pressure Equipment Directive) is applicable on this type of pumps. All types of liquids. Find out our range of pumps related to this application :…

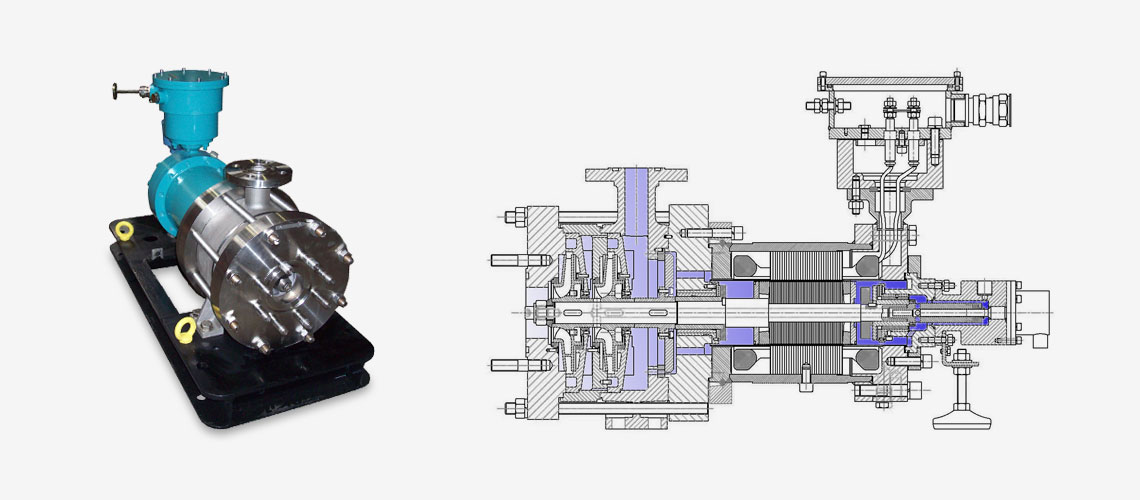

CHLORINE

Chlorine : Chlorine (Cl2) Find out our range of pumps related to this application : PUMPING RESTRICTIONS :Chorine has an important vapor pressure that can lead to a vaporization inside the pump.. SOLUTION OPTIMEX :By his experience in pumping chlorine, Optimex is today able to adapt the design of its machines in order to guarantee…

HOT LIQUIDS

Hot liquids can be collected into two categories: 100°C < Hot liquids < 160°C < Very hot liquids < 500°C : Thermic oil like therminol Liquid metals (lead, sodium…) Melted salt Find out our range of pumps related to this application : PUMPING RESTRICTIONS :Pumping high temperature liquids can be dangerous for the near environment…

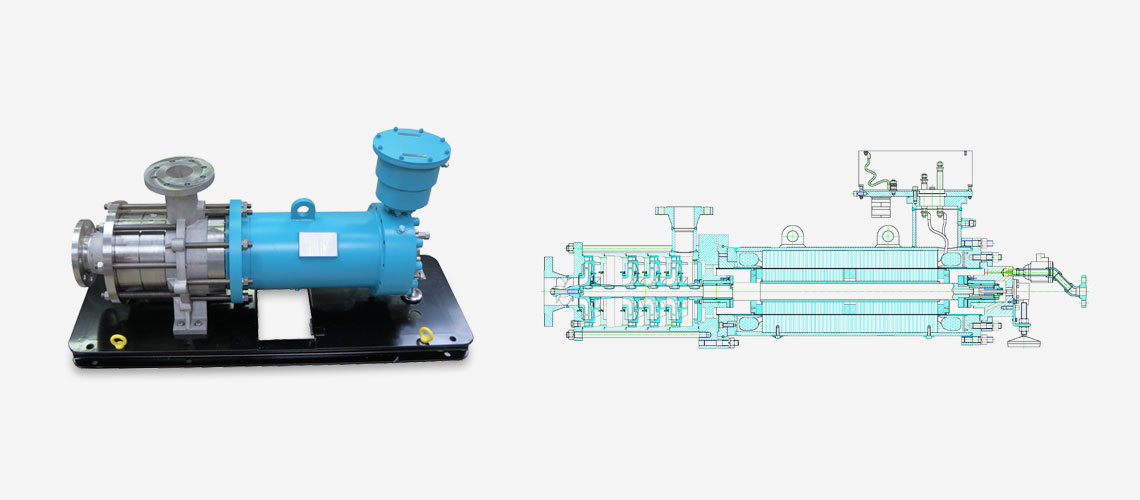

LIQUEFIED GAS

Liquefied gas : Ammonia (NH3) Butane (C3H8) Ethane (C2H6) Ethylene (C2H4) Propane (C4H10) Propylene (C3H6) Hydrogene sulphide (H2S) … Find out our range of pumps related to this application : PUMPING RESTRICTIONS :Pumping liquefied gas implies to have suitable solutions depending on the parameters : High vapor pressure or little pressure differences between vapor pressure…

DANGEROUS LIQUIDS

Dangerous liquids : CMR products Soda Acides Phosgene H2S … Find out our range of pumps related to this application : PUMPING RESTRICTIONS :External leaks are can’t be tolerated. OPTIMEX SOLUTIONS :The double confinement of OPTIMEX pumps allows to carry these liquids securely. All OPTIMEX ranges can be used for these dangerous applications. OPTIMEX PRODUCTION…
