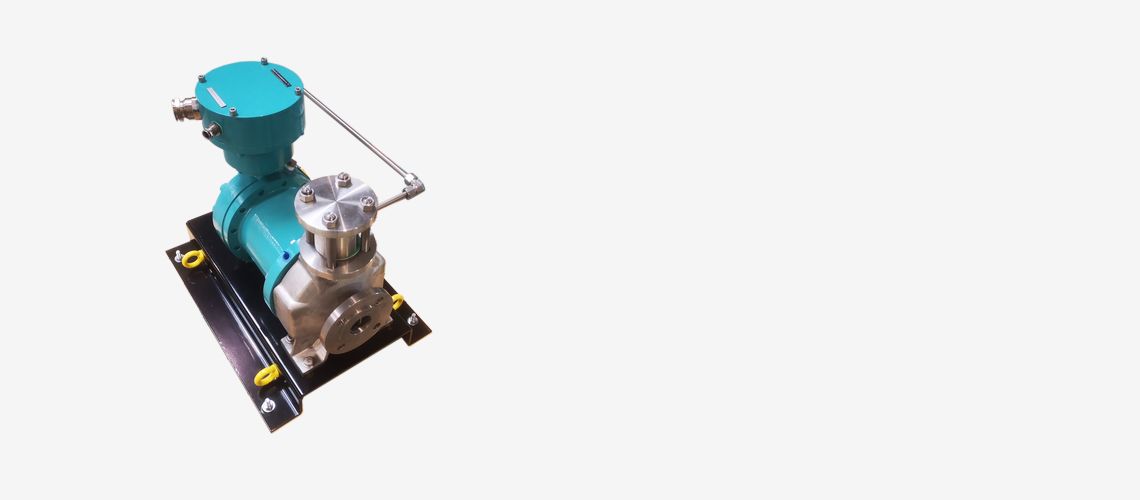

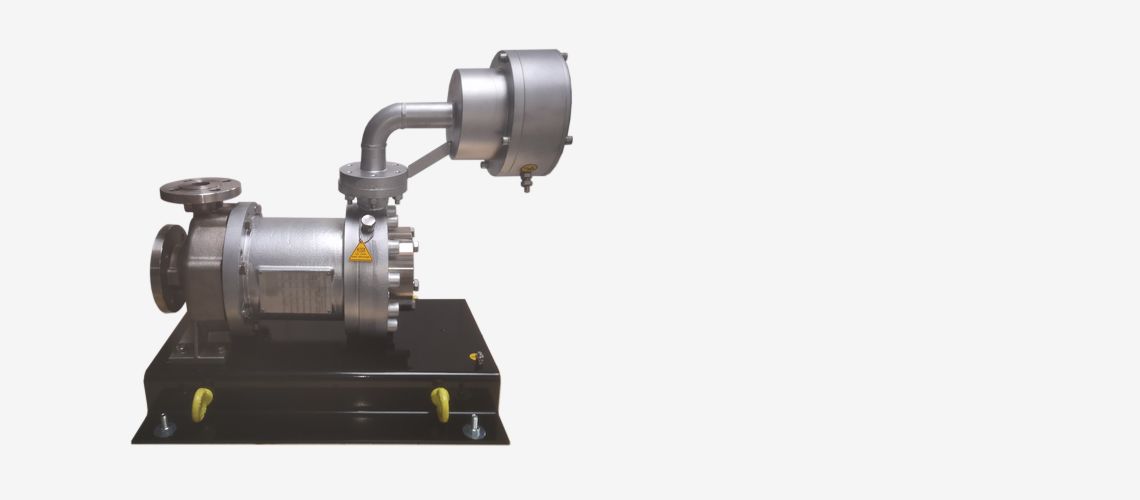

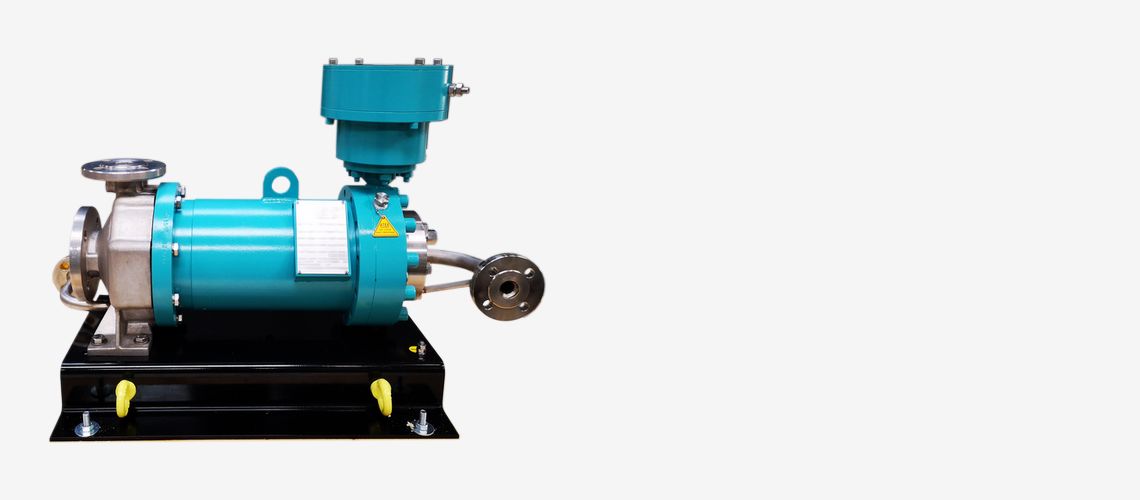

THE CANNED MOTOR PUMP CNS RANGE

– Normalized canned motor pump ISO 15783 & ISO 2858 for chemical application –
You are here:
  1. Home
  2. Canned motor pumps ranges
  3. Canned motor pump CNS

THE CNS RANGE MEETS THE REQUIREMENTS FOR ISO 15783 STANDARDISED CANNED MOTOR PUMPS

Based on the 5 most used ISO2858 dimensions, OPTIMEX offers a range of standardised pump for the chemical industry. This range is characterized by predefined specifications and a fixed list of options which enables a reduced and attractive lead time.

This range complies with the ISO15783 seal-less pumps standard and respects the chemical industry standard ISO2858.

standard pump for chemical industry
CONSTRUCTION:
Pump casing according to ISO 2858, PN16
Construction according to ISO 15783
ATEX certification
MATERIAL:
INOX 316L (1.4404)

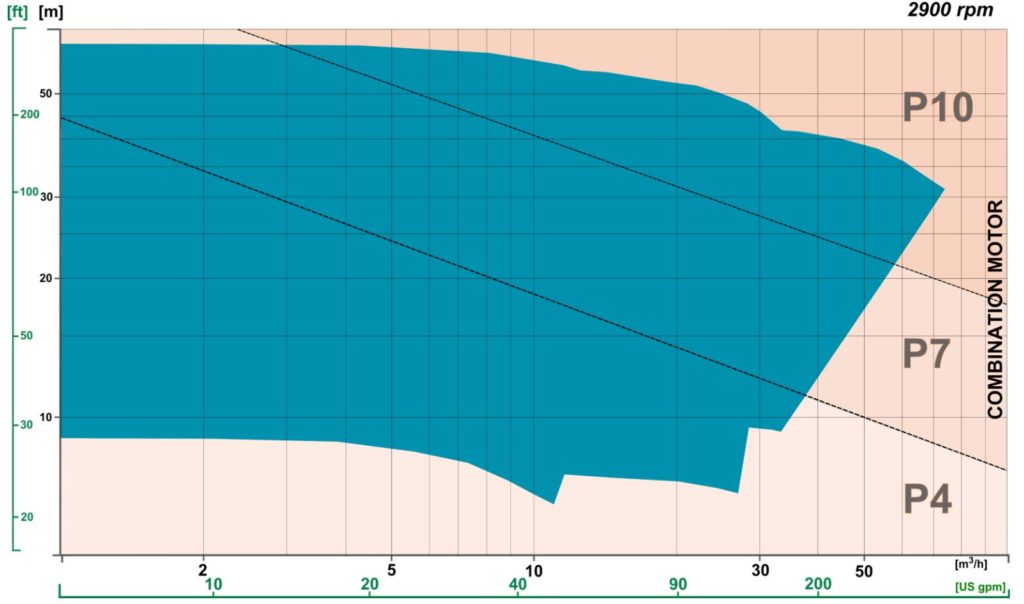

FUNCTIONNING AT:
Flow : until 60m3/h.
Heigh : until 60 m.

1. Standard flanges according to EN 1092-1, PN16 RF

2. Casing wear ring

3. Casing drain nut

4. Motor Frame (secondary containment)

5. Auxiliary impeller

A. Secondary containment chamber

B. Leak proof feedthrough

C. Motor windings

D. Rear bearing support
