THE CANNED MOTOR PUMP MULTI RANGE
Optimex multi stage canned motor pumps meet the requirements of the chemical and petroleum industry.
Needs for high HMT require the use of multi stages Canned Motor Pumps. OPTIMEX has taken a lot of care to develop a range of products that would fit all requirements from the chemical industry as well as the Oil & Gas industry according to ISO 15783 and API 685. Now recognized for its imposing realizations for critical applications (such as liquefied gas), OPTIMEX has a strong feedback and know how.
CONSTRUCTION
- Construction: ISO 15783 or API685
- Flanges: According to
NF EN1092-1 and ASME B16.5 - Options: Barrel, vertical mounting (with or without charge barrel)
MATERIAL
- Nodular cast iron (NCI)
- Stainless steel (SS)
- Carbon steel (CS), Low temperature carbon steel (LTCS)
- Duplex (Uranus U55)
- Code API S5, S6, S8, A8, D1
- Other materials on demand

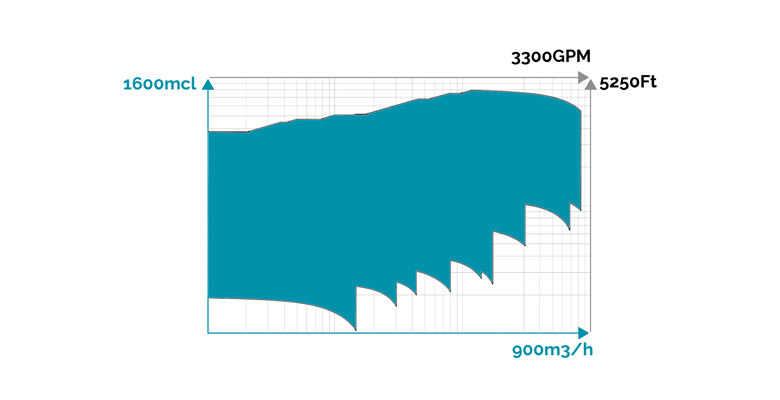

FUNCTIONNING AT
- Flow: Until 500 m3/h
- Head: Until à 900 m
- Frequency: 50 to 60 Hz or frequency variation
- Temperature: -135°C / 350°C
- Pressure design: Up to 50 bar
HAZARDOUS AREA
- Class temp T1 to T6
- Zone 1 to zone 2
- IECEx/ATEX/UL/CSA/CCC marking
Canned Motor Pump MULTI Range

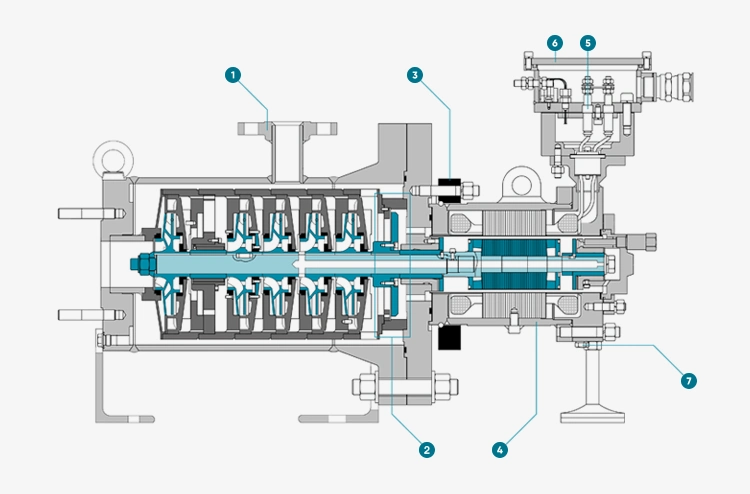

Photo legend:
1 Standard flanges according to ASME B16.5, Class 300 RF.
2 Thrust balancing system.
3 Loose flange: allows adaptability between
different motors and hydraulics of the MULTI Range.
4 Motor frame with same pressure design as the pump.
5 Leak proof feedthrough with same design pressure as the pump.
6 Terminal box: in “e” protection.
7 Drainable second containment.
