CNM MAGNETIC DRIVE PUMP RANGE

CNM magnetic drive pumps for chemical applications ISO 2858
You are here:

THE CNM RANGE MEETS THE NEEDS OF ISO 15783 CHEMISTRY MAGNETIC DRIVE SEALED PUMPS

In addition to the range of canned motor pumps, Optimex has developed a new range of magnetic drive pumps for the chemical industry which includes all sizes according to ISO 2858.

Our OPTIMAG range of magnetic drive pumps has been developed for use in severe applications and provides a very high level of safety due to its seal-less design.

Sized according to ISO2858 chemical standards, the OPTIMAG range can replace all other standard pumps, even sealed mechanical pumps,
standardised pumps and even pumps with mechanical seals.



We meet the intrinsic flexibility needs of our customers’ applications to specification.

These magnetic drive pumps are widely used in the construction of new units as well as in the replacement, securing or upgrading of existing stations.

The range complies with the ISO 15783 sealed pump standard and the ISO 2858 chemical industry standard.

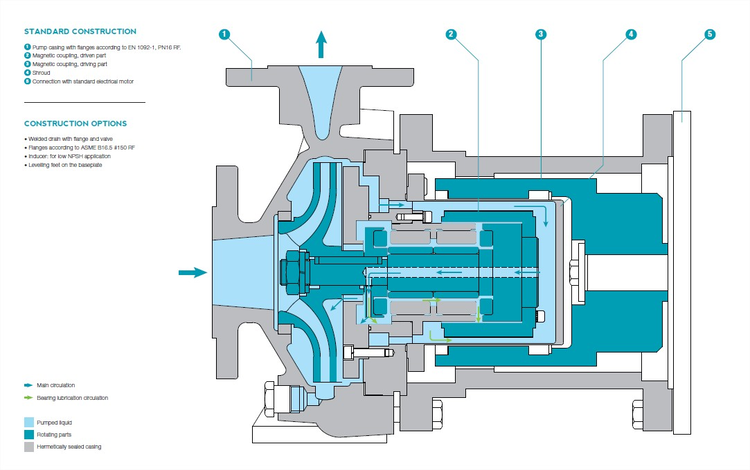

Specifications of design gamme CNM
CONSTRUCTION:
Construction standard: ISO 15783.

Monobloc version: Pump body according to ISO 2858

Frame version: Pump according to ISO 2858

MATERIAL:
Stainless steel 316L – Hastelloy C4

Magnetic drive: Cobalt Samarium

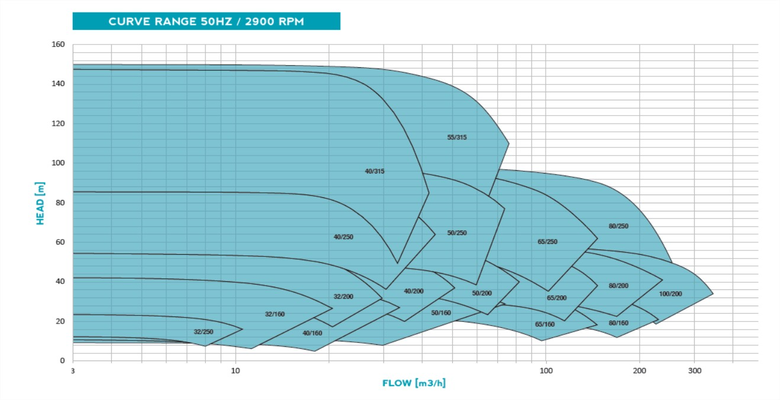

FUNCTIONNING AT:
Flow rate: up to 300 m3/h.
Height: up to 140 m.
