Needs for high HMT require the use of multi stages Canned Motor Pumps. OPTIMEX has taken a lot of care to develop a range of products that would fit all requirements from the chemical industry as well as the Oil & Gas industry. Even if the API685 does not cover this kind of industrial pumps, on demand, OPTIMEX applies all its applicable paragraphs. Now recognized for its imposing realizations for critical applications (such as liquefied gas), OPTIMEX has a strong feedback and know how.
THE CANNED MOTOR PUMP MULTI RANGE
– Multi Cellular Canned Motor Pumps according to ISO 15783 & API 685, for chemical or Oil & Gas applications –
OPTIMEX MULTI STAGE CANNED MOTOR PUMPS MEET THE REQUIREMENTS OF THE CHEMICAL AND PETROLEUM INDUSTRY
CONSTRUCTION:
Flanges : according to NF EN1092-1 or ASME B16.5.
Construction : ISO 15783 (on demand, applicable paragraphs of API685).
Options : barrel, vertical mounting (with or without charge barrel).
Construction : ISO 15783 (on demand, applicable paragraphs of API685).
Options : barrel, vertical mounting (with or without charge barrel).
MATERIAL:
Cast Iron – Inox 316L – Low temperature carbon steel – Duplex.

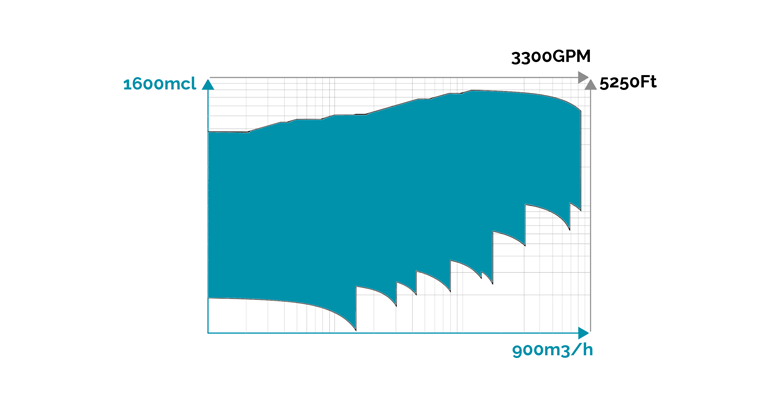

FUNCTIONNING AT:
Flow : until 500 m3/h.
Height : until à 150 m.
Height : until à 150 m.

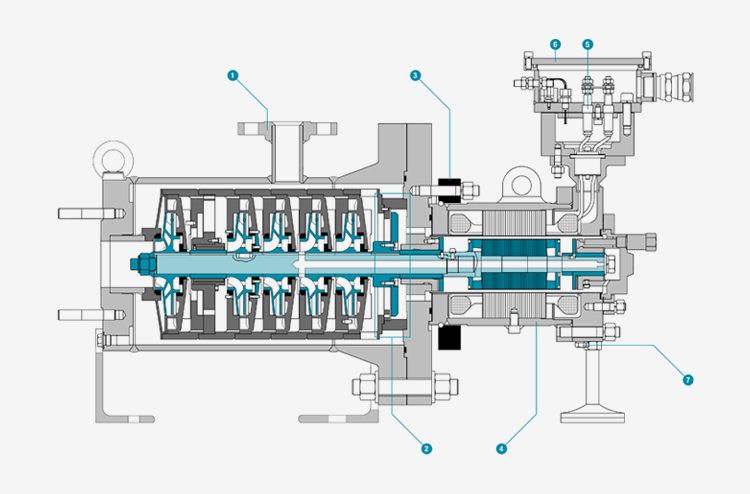

1. Standard flanges according to ASME B16.5, Class 300 RF.
2. Thrust balancing system.
3. Loose flange: allows adaptability between different motors and hydraulics of the MULTI Range.
4. Motor frame with same pressure design as the pump.
5. Leak proof feedthrough with same design pressure as the pump.
6. Terminal box: in “e” protection.
7. Drainable second containment.
