THE ETEI RANGE

– Canned motor pump ISO 15783 for chemical and petroleum applications (ISO 5199 & ISO 2858) –
Vous êtes ici :

THE ETEI RANGE FILLES THE NEEDS IN SEALLESS CANNED MOTOR PUMP ISO 15783 STANDARDIZED CHEMICAL PUMPS

OPTIMEX has first developed a range of products dedicated to the chemical industry in order to respond to its nearest customers’ needs for leak-proof and normalized pumps.
 The ETEI Range complies with the requirements in sealless pumps normalized ISO 15783 for the chemical industry. These canned motor pumps are widely used for new units constructions, as well as for an alternative for safer or more reliable machines.

canned motor pump - iso 15783 - optimex etei

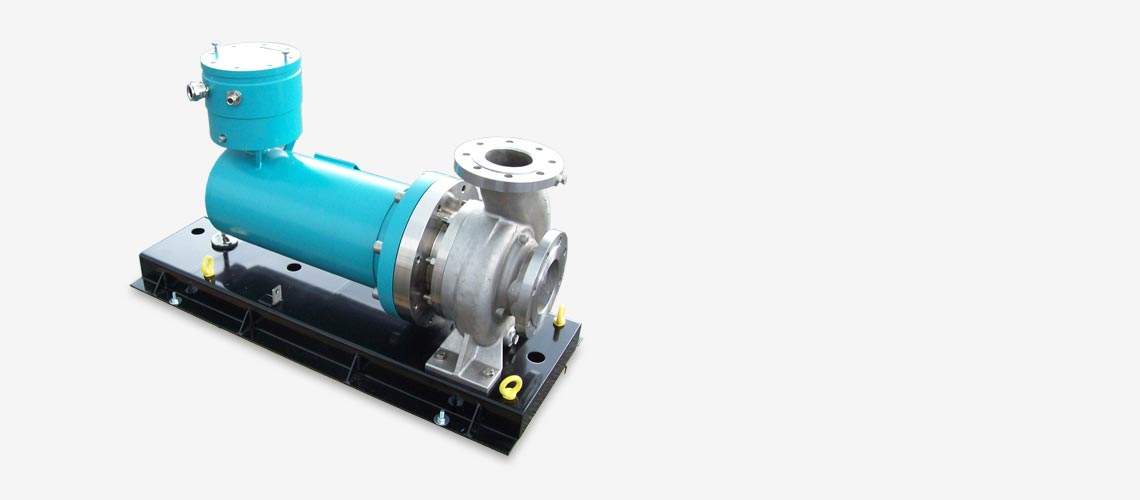

Canned motor pump ETEI range

CONSTRUCTION :

Pump casing according to ISO 2858, PN16 ou PN20.
Construction according to ISO 15783.

MATERIAL :

Stainless steel 316L – Duplex (Uranus U55).

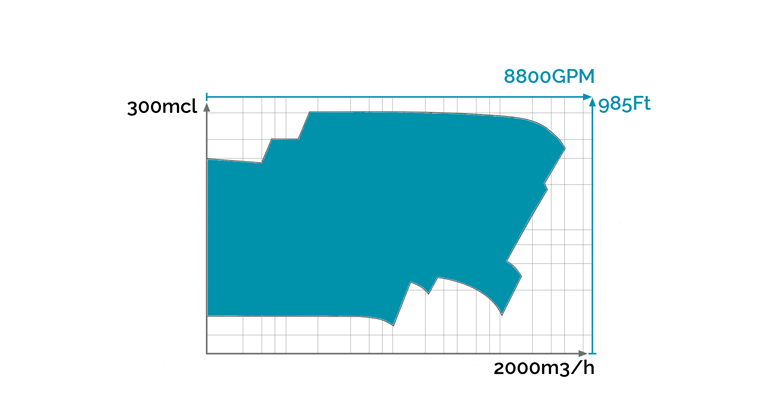

FUNCTIONNING AT :

Flow : until 500 m3/h.
Heigh : until 150 m.

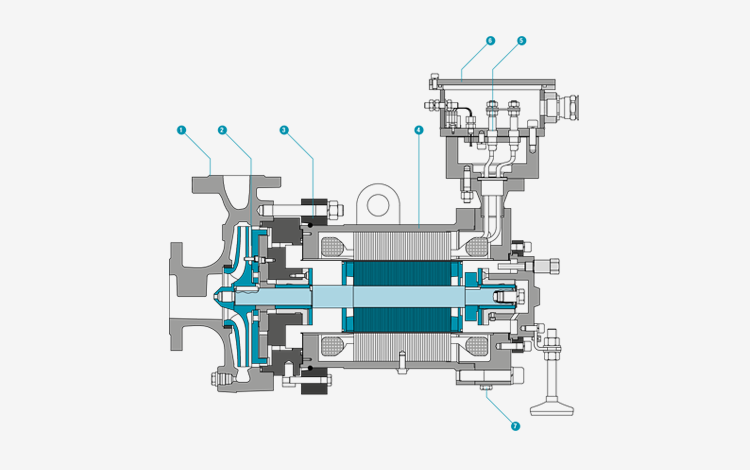

canned motor pump - iso 15783 - functionning

1. Standard flanges according to EN1092-1, PN16 RF.

2. Thrust balancing system BL+2.

3. Loose flange: allows adaptability between different motors and hydraulics of the ETEI Range.

4. Motor frame with same pressure design as the pump.

5. Leak proof feedthrough with same design pressure as the pump.

6. Terminal box: in “e” protection.

7. Drainable second containment.
