IN ACCORDANCE WITH THE API 685 STANDARD, OUR CANNED MOTOR PUMPS PREI RANGE SATISFIES THE OIL & GAS INDUSTRIES’ REQUIREMENTS.

The growing demand for reliable and safer operating pumps in the Oil & Gas industry gave OPTIMEX the opportunity to develop its own range of single stage Canned Motor Pumps adapted to this field. This was well coordinated with the emergence of the API 685 exclusively dedicated to seal less pumps. This is how the PREI Range has been designed in full compliance with this API standard as well as with customer expectations for their critical and severe applications.

canned motor pump - api 685 - optimex prei

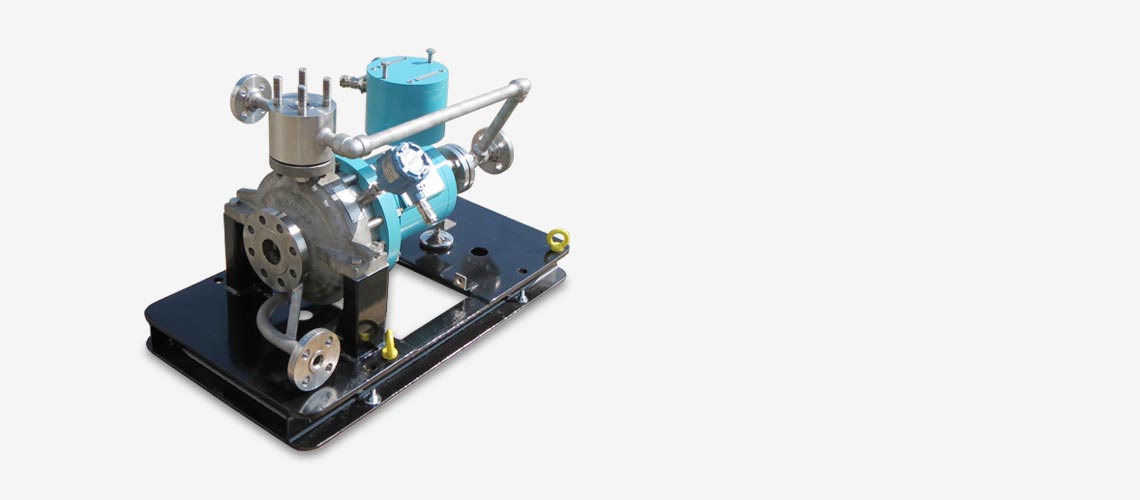

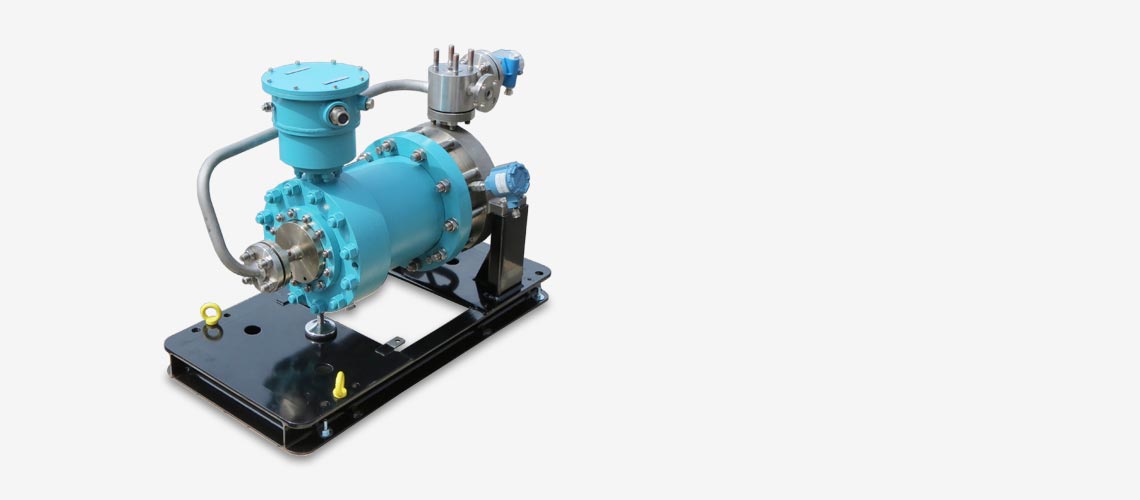

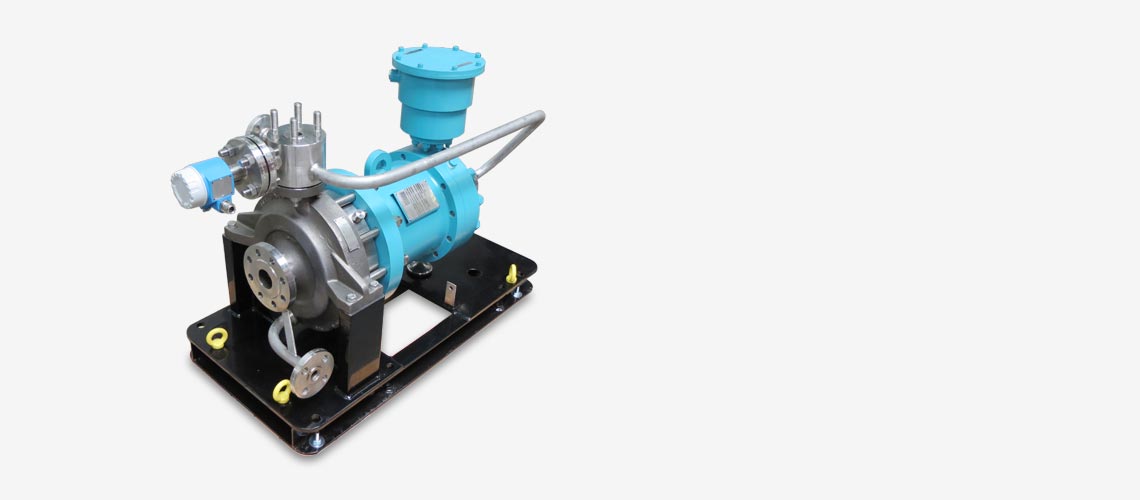

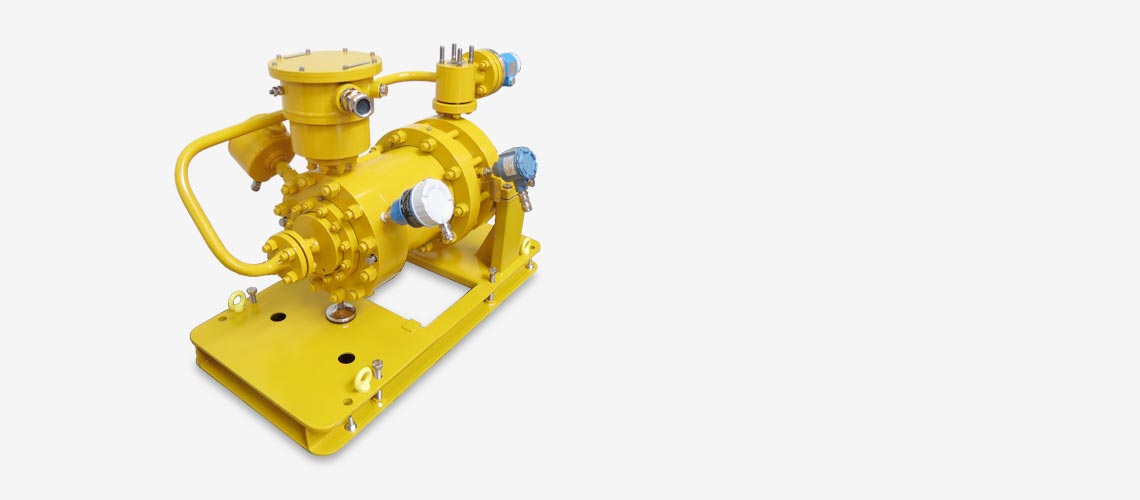

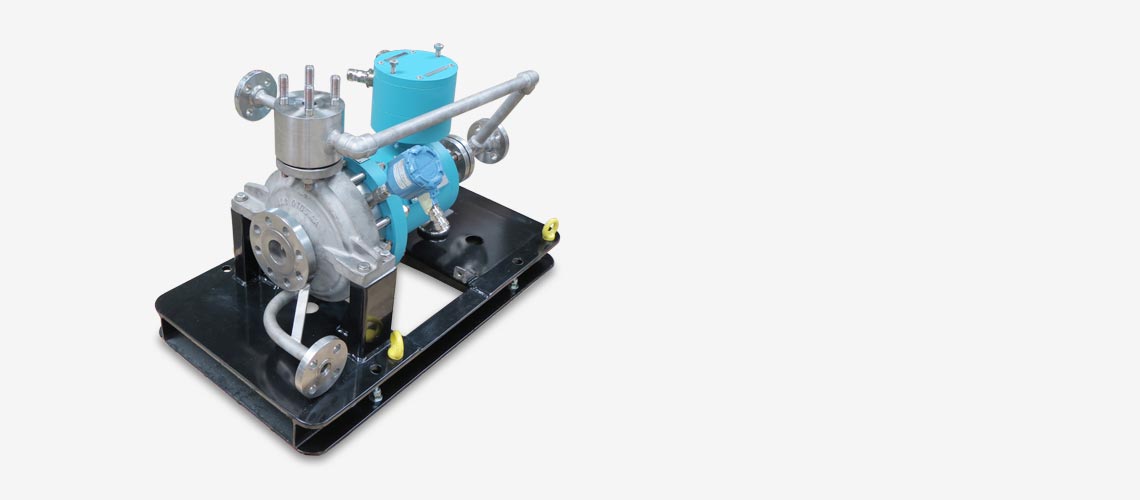

Canned motor pump PREI range

CONSTRUCTION :

Construction according to API685
.
Casing : under casing foot or axial foot casing.
Flanges : according to ASME B16.5.

MATERIAL :

Code API S5, S6, S8, A8.

Stainless steel 316L – Duplex (Uranus U55)

FUNCTIONNING AT :

Flow : until 500 m3/h.
Height : until 150 m.
canned motor pump - api 685 - functionning

1. Standard flanges according to ASME B16.5, Class 300 RF.

2. Thrust balancing system BL+2.

3. Loose flange: allows adaptability between different motors and hydraulics of the PREI Range.

4. Motor frame with same pressure design as the pump.

5. Leak proof feedthrough with same design pressure as the pump.

6. Terminal box: in “e” protection.

7. Drainable second containment.
